VT-NH-TP-8WAY DB-STD

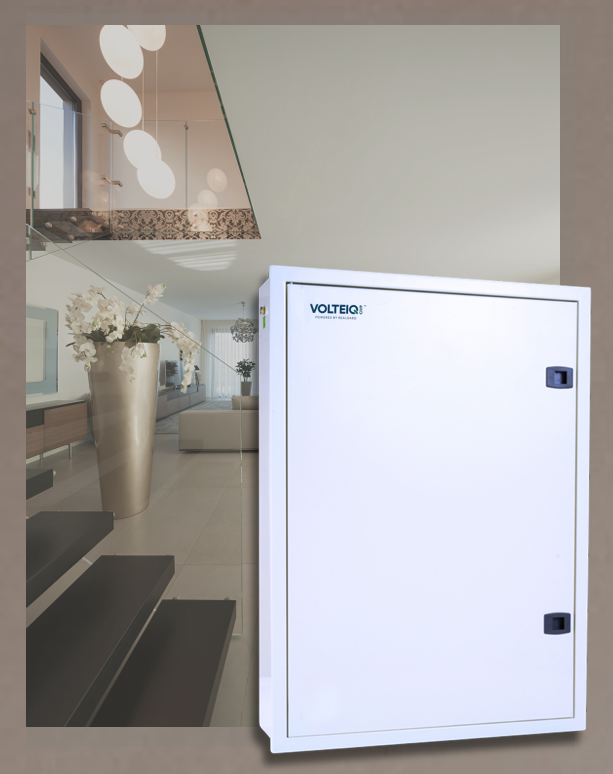

VOLTEIQ Home Series TP 8-Way DB – New (STD)
Three Phase | 15 kW / 63A
Integrated three-phase voltage protection built into an 8-way distribution board for new residential constructions.
verified_user
Key Features
- CIVP integrated into 8-way DB
- Centralised 3-phase protection
- LED indication
Applications
New 3-phase residential buildings
New 3-phase residential buildings | Villas and independent homes
| Parameter | Specification |
|---|---|
| Model No | VT-NH-TP-8WAY DB-STD |
| Series | Home Series – New Installation |
| Phase | Three Phase |
| Working Range (Input) | 160–260V A.C |
| Low Voltage Trip | 160V A.C |
| High Voltage Trip | 260V A.C |
| Indication | LED Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 30 seconds |
| Capacity | 15 kW / 63A |
| Installation Type | Recess Mounted – Double Door |
| Application | New 3P residences up to 15 kW |
| Specifications : Maximum Load: 63A | Ways: 8 |
