VT-NH-TP-8WAY DB-DLX

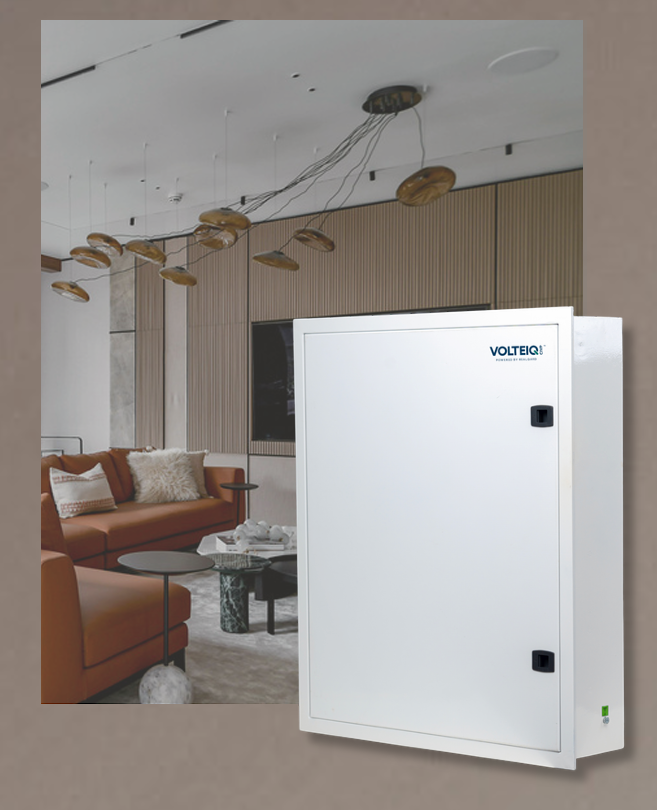

VOLTEIQ Home Series TP 8-Way DB – New (DLX)
Three Phase | 20 kW / 80A
Deluxe integrated three-phase voltage protection in an 8-way DB with enhanced capacity for premium new residences.
verified_user
Key Features
- Deluxe integrated 3-phase protection
- Digital display
- Higher capacity
Applications
Premium new 3-phase residences
Premium new 3-phase residences | High-end villas
| Parameter | Specification |
|---|---|
| Model No | VT-NH-TP-8WAY DB-DLX |
| Series | Home Series – New Installation |
| Phase | Three Phase |
| Working Range (Input) | 160–260V A.C |
| Low Voltage Trip | 160V A.C |
| High Voltage Trip | 260V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 8 seconds |
| Capacity | 20 kW / 80A |
| Installation Type | Recess Mounted – Double Door |
| Application | New 3P residences up to 20 kW |
| Specifications : Maximum Load: 80A | Ways: 8 |
