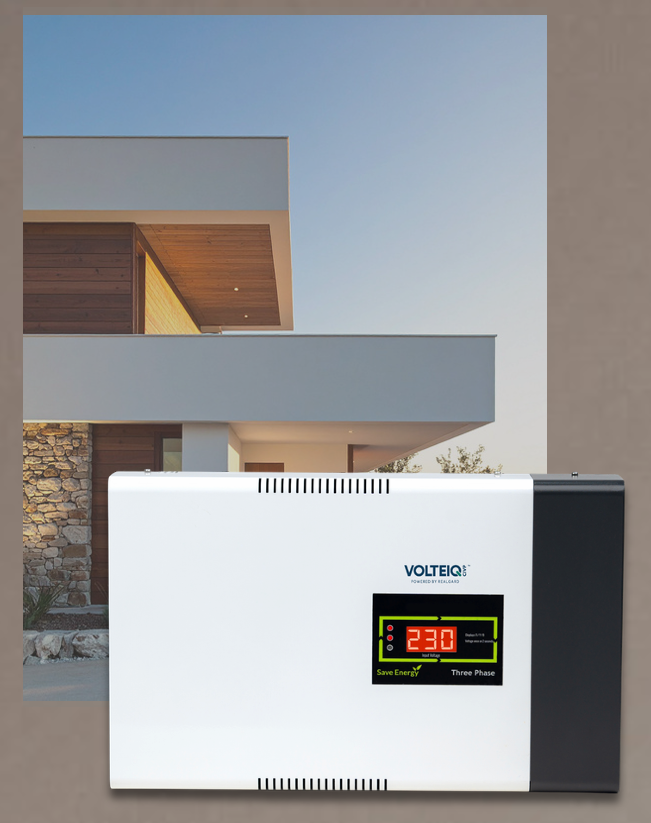

VT-EH-TP63 LX
VOLTEIQ Home Series TP 63A
Three Phase | 63A
Centralised Intelligent Voltage Protection (CIVP) for three-phase existing residential installations with digital display and automatic protection.
verified_user
Key Features
- Centralised 3-phase protection
- Automatic trip on voltage faults
- Digital display
Applications
Existing 3-phase residences
Existing 3-phase residences | Villas and independent houses
| Parameter | Specification |
|---|---|
| Model No | VT-EH-TP63 LX |
| Series | Home Series – Existing Installations |
| Phase | Three Phase |
| Working Range (Input) | 130–260V A.C |
| Low Voltage Trip | 160V A/C |
| High Voltage Trip | 260V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Not Available |
| Turn-On Delay | 8 seconds |
| Capacity | 63A |
| Installation Type | Wall Mounting |
| Application | Existing 3P residential supply |
| Specifications | Rated Current: 63A |
