VT-NH-TP-4WAY DB-STD

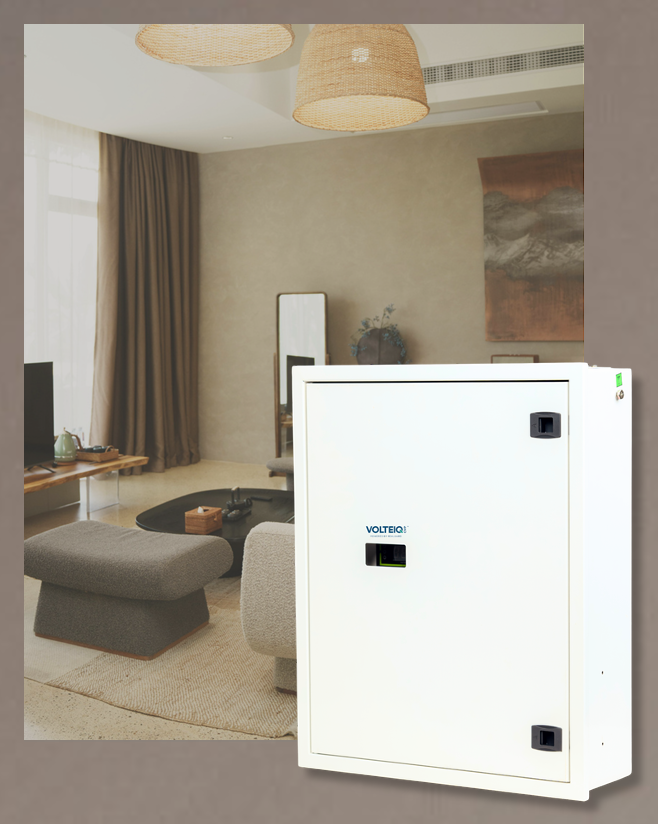

VOLTEIQ Home Series TP 4-Way DB – New (STD)
Three Phase | 15 kW / 63A
Integrated three-phase voltage protection built into a 4-way DB for new residential constructions.
verified_user
Key Features
- CIVP integrated into 4-way DB
- Centralised 3-phase protection
Applications
New 3-phase residential buildings
New 3-phase residential buildings | Villas and independent homes
| Parameter | Specification |
|---|---|
| Model No | VT-NH-TP-4WAY DB-STD |
| Series | Home Series – New Installation |
| Phase | Three Phase |
| Working Range (Input) | 160–260V A.C |
| Low Voltage Trip | 160V A.C |
| High Voltage Trip | 260V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 8 seconds |
| Capacity | 15 kW / 63A |
| Installation Type | Recess Mounted – Double Door |
| Application | New 3P residences up to 15 kW |
| Specifications : Maximum Load: 63A | Ways: 4 |
