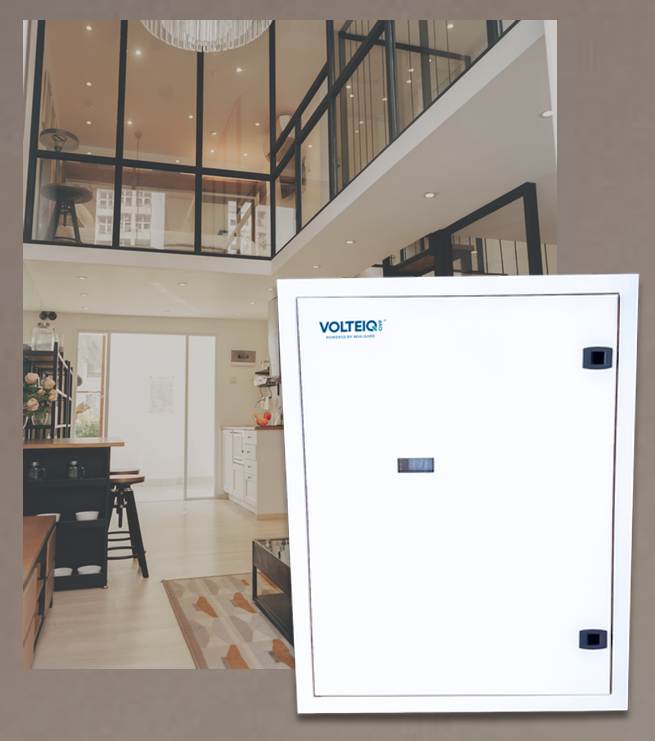

VT-NH-TP-12WAY DB-PRIME
VOLTEIQ Home Series TP 12-Way DB – New (PRIME)
Three Phase | 20 kW / 80A
Prime flagship integrated three-phase voltage protection in a 12-way DB for large premium new residential constructions.
verified_user
Key Features
- Prime-tier integrated 3-phase protection
- 12-way expanded circuit distribution
Applications
New premium 3-phase large residences
New premium 3-phase large residences | Luxury homes requiring expanded circuits
| Parameter | Specification |
|---|---|
| Model No | VT-NH-TP-12WAY DB-PRIME |
| Series | Home Series – New Installation |
| Phase | Three Phase |
| Working Range (Input) | 160–260V A.C |
| Low Voltage Trip | 160V A.C |
| High Voltage Trip | 260V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 8 seconds |
| Capacity | 20 kW / 80A |
| Installation Type | Recess Mounted – Double Door |
| Application | New 3P residences up to 20 kW |
| Specifications : Maximum Load: 80A | Ways: 12 |
