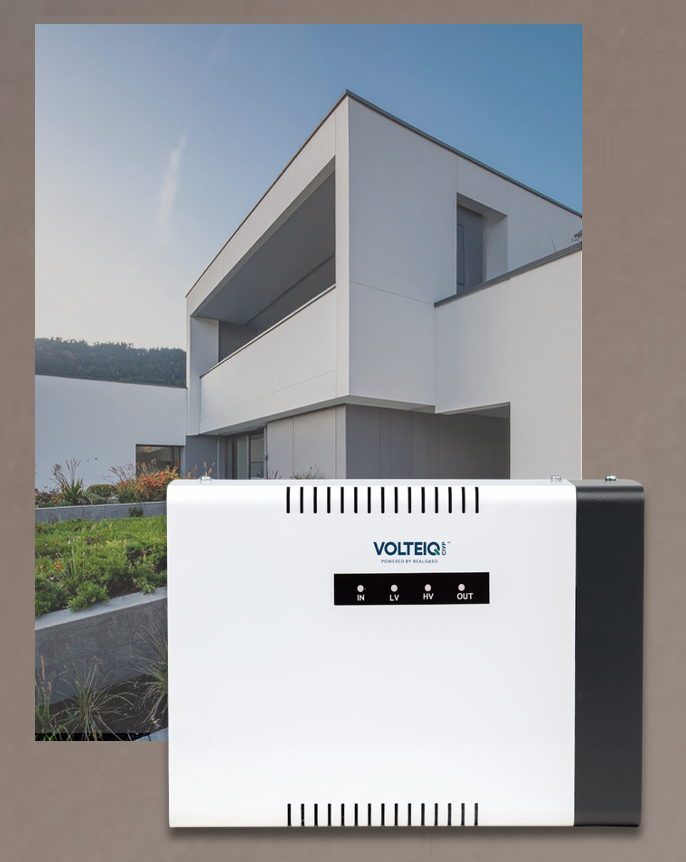

VT-EH-SP50 LX
VOLTEIQ Home Series SP 5kW – Existing
Single Phase | 5 kW / 20A
Centralised Intelligent Voltage Protection (CIVP) for single-phase existing residential installations. Automatically disconnects appliances during unsafe voltage conditions.
verified_user
Key Features
- Centralised whole-home protection
- Automatic trip on low/high voltage
- LED status indication
Applications
Existing single-phase residences
Existing single-phase residences | Apartments with SP connection
| Parameter | Specification |
|---|---|
| Model No | VT-EH-SP50 LX |
| Series | Home Series – Existing Installations |
| Phase | Single Phase |
| Working Range (Input) | 160–260V A.C |
| Low Voltage Trip | 160V A.C |
| High Voltage Trip | 260V A.C |
| Indication | LED Display |
| Bypass Mains Switch | Not Available |
| Turn-On Delay | 30 seconds |
| Capacity | 5 kW / 20A |
| Installation Type | Wall Mounting |
| Application | Existing SP residential supply |
| Specifications | Maximum Load: 20A |
