VT-NH-SP-16WAY DB-STD

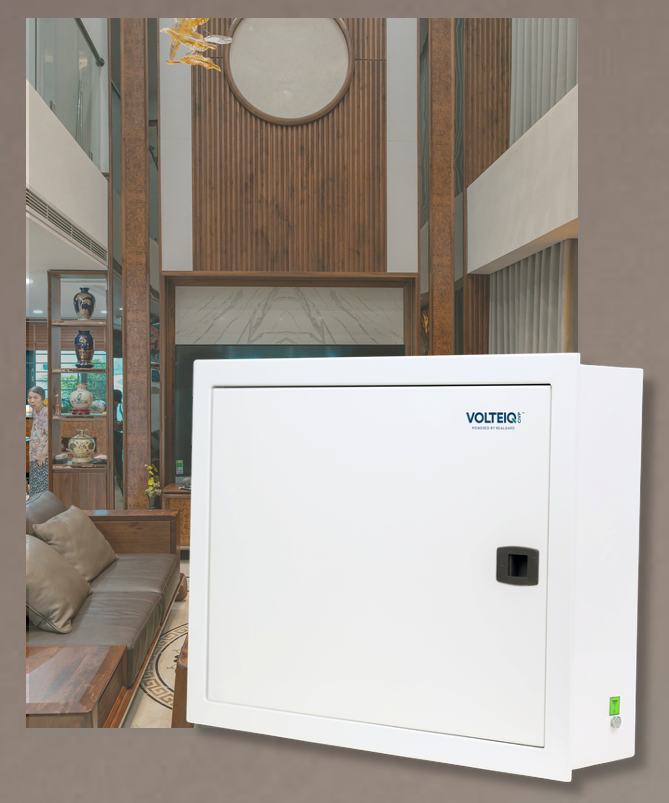

VOLTEIQ Home Series SP 16-Way DB – New (STD)
Single Phase | 5 kW / 20A
Integrated single-phase voltage protection built into a 16-way distribution board for new residential constructions with more circuits.
verified_user
Key Features
- CIVP integrated into 16-way DB
- Centralised SP protection
- LED indication
Applications
New single-phase residential buildings
New single-phase residential buildings | Homes requiring more circuit capacity
| Parameter | Specification |
|---|---|
| Model No | VT-NH-SP-16WAY DB-STD |
| Series | Home Series – New Installation |
| Phase | Single Phase |
| Working Range (Input) | 160–260V A.C |
| Low Voltage Trip | 160V A.C |
| High Voltage Trip | 260V A.C |
| Indication | LED Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 30 seconds |
| Capacity | 5 kW / 20A |
| Installation Type | Recess Mounted – Double Door |
| Application | New SP residences up to 5 kW |
| Specifications : Maximum Load: 20A | Ways: 16 |
