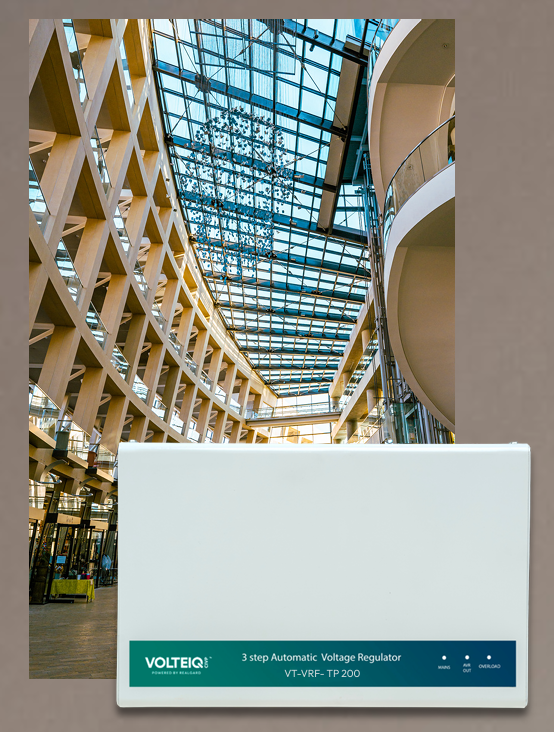

VT-VRF-TP 200
VOLTEIQ AC Series TP VRF Protection 20A
Three Phase | 20A
High-capacity three-phase voltage protection for large-scale VRF and HVAC installations in commercial environments.
verified_user
Key Features
- High-capacity VRF AC protection
- 3-phase voltage trip
- Digital display
Applications
Large VRF and HVAC systems
Large VRF and HVAC systems | Malls and large commercial complexes
| Parameter | Specification |
|---|---|
| Model No | VT-VRF-TP 200 |
| Series | AC Series |
| Phase | Three Phase |
| Working Range (Input) | 350–450V A.C (L-L) |
| Low Voltage Trip | 350V A.C |
| High Voltage Trip | 450V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 60 seconds |
| Capacity | 20A |
| Installation Type | Wall Mounting |
| Application | VRF AC systems |
| Specifications | Maximum Load: 20A |
