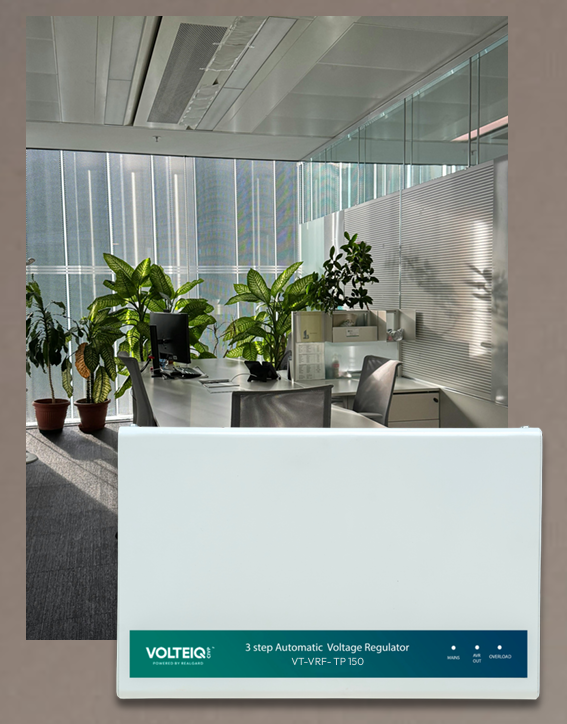

VT-VRF-TP 150
VOLTEIQ AC Series TP VRF Protection 15A
Three Phase | 15A
Three-phase voltage protection for mid-capacity VRF and centralised air conditioning systems in commercial spaces.
verified_user
Key Features
- Mid-capacity VRF AC protection
- 3-phase voltage trip
- Digital display
Applications
Large VRF air conditioning systems
Large VRF air conditioning systems | Commercial complexes and malls
| Parameter | Specification |
|---|---|
| Model No | VT-VRF-TP 150 |
| Series | AC Series |
| Phase | Three Phase |
| Working Range (Input) | 350–450V A.C (L-L) |
| Low Voltage Trip | 350V A.C |
| High Voltage Trip | 450V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 60 seconds |
| Capacity | 15A |
| Installation Type | Wall Mounting |
| Application | VRF AC systems |
| Specifications | Maximum Load: 15A |
