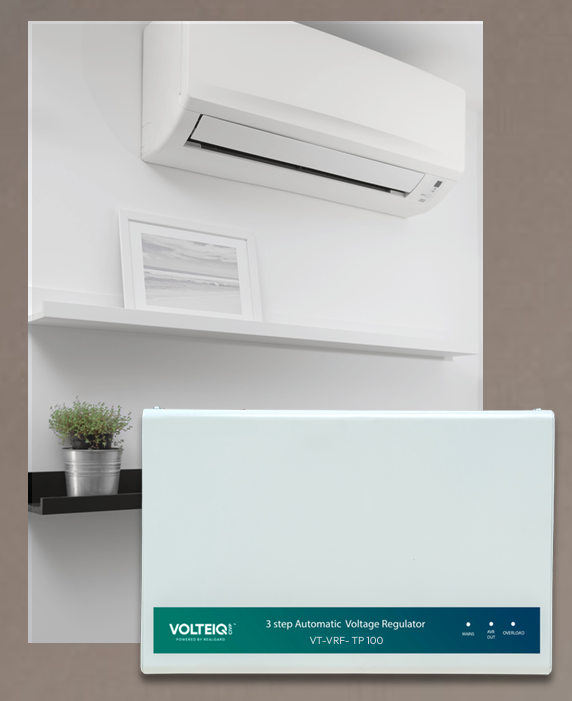

VT-VRF-TP 100
VOLTEIQ AC Series TP VRF Protection 10A
Three Phase | 10A
Three-phase voltage protection solution designed specifically for large VRF and centralised air conditioning systems.
verified_user
Key Features
- Dedicated VRF AC protection
- 3-phase voltage trip
- Digital display
Applications
VRF air conditioning systems
VRF air conditioning systems | Centralised AC units in commercial buildings
| Parameter | Specification |
|---|---|
| Model No | VT-VRF-TP 100 |
| Series | AC Series |
| Phase | Three Phase |
| Working Range (Input) | 350–450V A.C (L-L) |
| Low Voltage Trip | 350V A.C |
| High Voltage Trip | 450V A.C |
| Indication | Digital Display |
| Bypass Mains Switch | Available |
| Turn-On Delay | 60 seconds |
| Capacity | 10A |
| Installation Type | Wall Mounting |
| Application | VRF AC systems |
| Specifications | Maximum Load: 10A |
